MDM6610

From The iPhone Wiki
Jump to: navigation, search

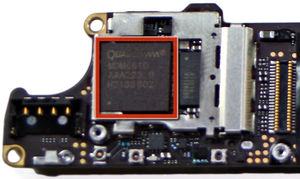

MDM6610 in an iPhone 4S

The Qualcomm MDM6610 is the baseband chip used in the iPhone 4S.

Baseband Firmware

The firmware for the baseband chip comes in Trek-X.X.XX.Release.bbfw files (with X being the version). The BBFW file is just a renamed standard ZIP archive and contains a couple of .mbn files which are all digitally signed with a certificate from Qualcomm. Qualcomm's Senior Engineer Shital Mehta is involved with the programming of the firmware. The amss.mbn file is an ELF file:

Mac OS X file command output

file Trek-1.0.11.Release/amss.mbn
/Trek-1.0.11.Release/amss.mbn: ELF 32-bit LSB executable, ARM, version 1, statically linked, corrupted section header size

Known Firmware Versions

iPhone 4S

1.0.11    5.0          (Build 9A334)
1.0.12    5.0.1 beta   (Build 9A402)
1.0.13    5.0.1 beta 2 (Build 9A404)
          5.0.1        (Build 9A405)
1.0.14    5.0.1        (Build 9A406)
1.2.01-1  5.1 beta     (Build 9B5117b)
1.4.00    5.1 beta 2   (Build 9B5127c)
1.5.04    5.1 beta 3   (Build 9B5141a)
2.0.10    5.1          (Build 9B179)
2.0.12    5.1.1        (Build 9B206)
2.8.01    6.0 beta     (Build 10A5316k)
2.8.04    6.0 beta 2   (Build 10A5336d)
2.8.07    6.0 beta 3   (Build 10A5355d)
3.0.00    6.0 beta 4   (Build 10A5376e)
3.0.04    6.0 GM       (Build 10A403)
          6.0          (Build 10A403)
          6.0.1        (Build 10A523)
          6.1 beta     (Build 10B5095f)
          6.1 beta 2   (Build 10B5105c)
          6.1 beta 3   (Build 10B5117b)
          6.1 beta 4   (Build 10B5126b)
          6.1 beta 5   (Build 10B142)
3.4.01    6.1          (Build 10B142)
          6.1.1 beta   (Build 10B311)
3.4.02    6.1.1        (Build 10B145)
          6.1.2        (Build 10B146)
3.4.03    6.1.3 beta 2 (Build 10B318)
          6.1.3        (Build 10B329)
4.3.01    7.0 beta     (Build 11A4372q)
          7.0 beta 2   (Build 11A4400f)
4.4.00    7.0 beta 3   (Build 11A4414e)
4.4.03    7.0 beta 4   (Build 11A4435d)
          7.0 beta 5   (Build 11A4449a)
          7.0 beta 6   (Build 11A4449d)
5.0.00    7.0 GM       (Build 11A465)
          7.0          (Build 11A465)
          7.0.2        (Build 11A501)
5.0.02    7.0.3        (Build 11B511)
          7.0.4        (Build 11B554a)
          7.0.6        (Build 11B651)
5.1.00    7.1 beta     (Build 11D5099e)
          7.1 beta 2   (Build 11D5115d)
          7.1 beta 3   (Build 11D5127c)
          7.1 beta 4   (Build 11D5134c)
          7.1 beta 5   (Build 11D5145e)
5.2.00    7.1          (Build 11D167)
          7.1.1        (Build 11D201)
          7.1.2        (Build 11D257)
5.2.01    8.0 beta     (Build 12A4265u)
5.3.01    8.0 beta 2   (Build 12A4297e)
5.3.02    8.0 beta 3   (Build 12A4318c)
          8.0 beta 4   (Build 12A4331d)
          8.0 beta 5   (Build 12A4345d)
5.4.00    8.0 GM       (Build 12A365)
          8.0          (Build 12A365)
          8.0.1        (Build 12A402)
          8.0.2        (Build 12A405)
5.3.02    8.1 beta     (Build 12B401)
5.4.00    8.1 beta 2   (Build 12B407)
          8.1          (Build 12B411)
          8.1.1 beta   (Build 12B432)
          8.1.1        (Build 12B435)
          8.1.2        (Build 12B440)
          8.1.3        (Build 12B466)
          8.2 beta     (Build 12D436)
          8.2 beta 2   (Build 12D445d)
          8.2 beta 3   (Build 12D5452a)
          8.2 beta 4   (Build 12D5461b)
          8.2 beta 5   (Build 12D5480a)
          8.2          (Build 12D508)
5.3.02    8.3 beta     (Build 12F5027d)
          8.3 beta 2   (Build 12F5037c)
          8.3 beta 3   (Build 12F5047f)
5.4.00    8.3 beta 4   (Build 12F61)
          8.3          (Build 12F70)
5.3.02    8.4 beta     (Build 12H4074d)
          8.4 beta 2   (Build 12H4086d)
          8.4 beta 3   (Build 12H4098c)
5.3.03    8.4 beta 4   (Build 12H4125a)
5.5.00    8.4          (Build 12H143)
          8.4.1 beta   (Build 12H304)
          8.4.1 beta 2 (Build 12H308)
          8.4.1        (Build 12H321)
5.3.02    9.0 beta     (Build 13A4254v)
5.3.03    9.0 beta 2   (Build 13A4280e)
          9.0 beta 3   (Build 13A4293g)
5.3.04    9.0 beta 4   (Build 13A4305g)
          9.0 beta 5   (Build 13A4325c)
          9.0 GM       (Build 13A340)
          9.0          (Build 13A344)
6.0.00    9.0.1        (Build 13A404)
          9.0.2        (Build 13A452)
5.3.04    9.1 beta     (Build 13B5110e)
          9.1 beta 2   (Build 13B5119e)
6.0.00    9.1 beta 3   (Build 13B5130b)
          9.1 beta 4   (Build 13B136)
          9.1 beta 5   (Build 13B137)
          9.1          (Build 13B143)
5.3.03    9.2 beta     (Build 13C5055d)
          9.2 beta 2   (Build 13C5060d)
6.0.00    9.2 beta 3   (Build 13C71)
          9.2 beta 4   (Build 13C75)
          9.2          (Build 13C75)
          9.2.1 beta   (Build 13D11)
          9.2.1 beta 2 (Build 13D14)
          9.2.1        (Build 13D15)
5.3.04    9.3 beta     (Build 13E5181d)
          9.3 beta 1.1 (Build 13E5181f)
          9.3 beta 2   (Build 13E5191d)
          9.3 beta 3   (Build 13E5200d)
          9.3 beta 4   (Build 13E5214d)
6.0.00    9.3 beta 5   (Build 13E5225a)
          9.3 beta 6   (Build 13E5231a)
          9.3 beta 7   (Build 13E5233a)
          9.3          (Build 13E233 & 13E237)
          9.3.1        (Build 13E238)
          9.3.2 beta   (Build 13F51a)
          9.3.2 beta 2 (Build 13F61)
          9.3.2 beta 3 (Build 13F65)
          9.3.2 beta 4 (Build 13F68)
          9.3.2        (Build 13F69)
          9.3.3 beta   (Build 13G12)
          9.3.3 beta 2 (Build 13G21)
          9.3.3 beta 3 (Build 13G29)
          9.3.3 beta 4 (Build 13G33)
          9.3.3 beta 5 (Build 13G34)
          9.3.3        (Build 13G34)
          9.3.4        (Build 13G35)
          9.3.5        (Build 13G36)

External Resources

Tango Utilities-terminal.png This firmware article is a "stub", an incomplete page. Please add more content to this article and remove this tag.
