N82ap (Internals)

From The iPhone Wiki
Jump to: navigation, search

iFixit has a run down of all iPhone components here which includes some datasheets.

Following is a tear down graphic by Semiconductor Insights reported about here.

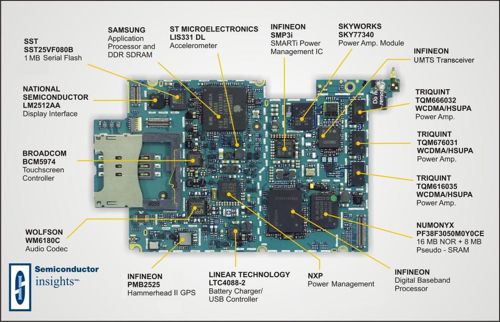

Top side

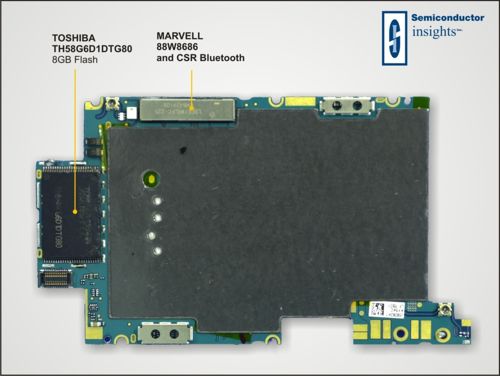

Bottom side

Hardware3G bottom.jpg

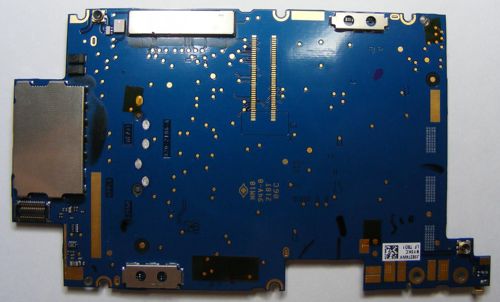

Testpoints Exposed


Important differences from the internals of original iPhone

  • Battery is no longer soldered.
  • CSR Bluetooth chip updated to BlueCore6-ROM. See Datasheet If you know what BT profiles this chip supports, please add.
  • (Anyone have more? please add)
